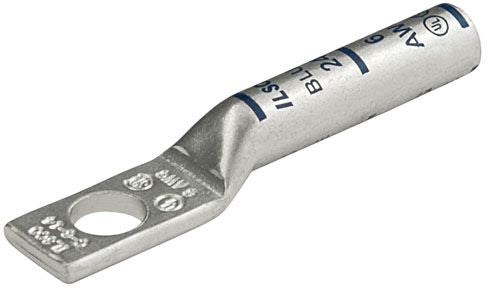

Ilsco CLNS-4-516 Compression Cable Lug
Couldn't load pickup availability
Manufactured from High Strength Seamless Copper Tubing Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded Identifies the Proper Compression Die; Application Versatility; Reduces Inventory Requirements; RoHS Compliant
Specifications:
Voltage Rating: 35 KV
Conductor Material: Copper
Conductor Size: 4 AWG
Barrel Type: Long
Barrel Length: 1.125 Inch
Pad Size: 0.875 Inch L x 0.486 Inch W x 0.093 Inch Thk
Number of Pad Holes: 1
Stud Size: 5/16 Inch
Color: Gray
Die Index: I-29
Material: Seamless Electro-Tin Plated Copper
Overall Length: 2.234 Inch
Approval: UL 453G, UL 467, UL 486A/B, CSA
