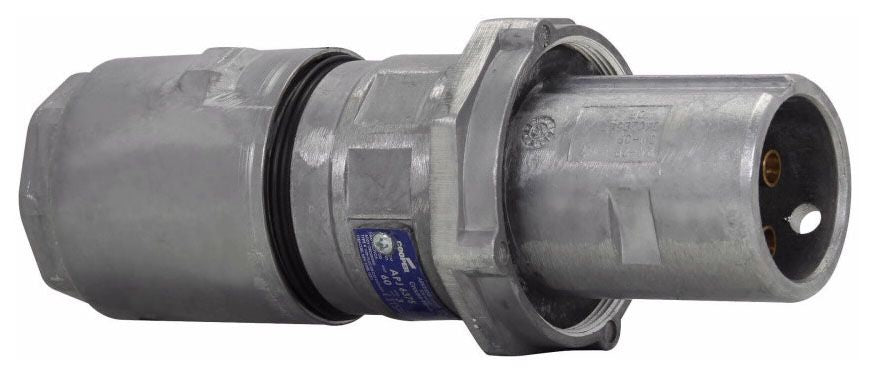

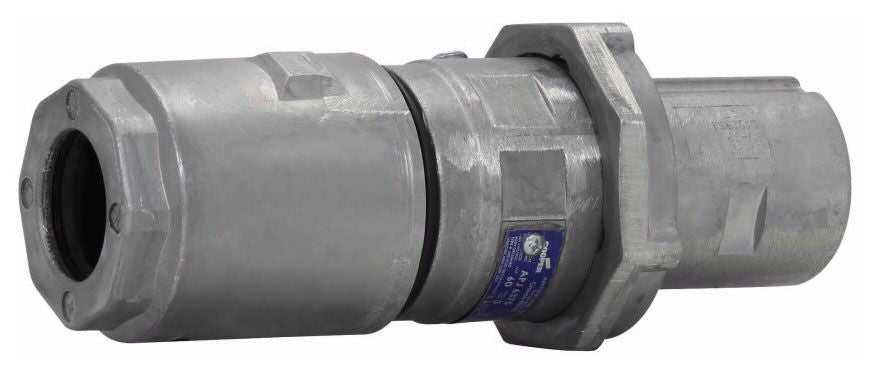

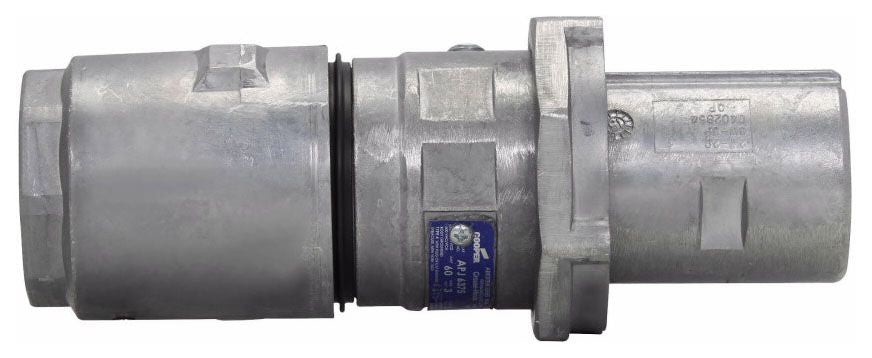

Crouse-Hinds APJ10477 Pin and Sleeve Mating Plug

Made of Krydon fiberglass-reinforced polyester, Crouse-Hinds series Arktite non-metallic plugs, receptacles and connectors are used to supply power to portable electrical devices such as welders, motors, pumps and conveyors. Available in 30A, 60A and 100A, these pin and sleeve devices are ideal for use in non-hazardous areas of chemical plants, sewage treatment facilities, cement plants, pulp and paper, food processing and other industrial facilities.Arktite non-metallic pin and sleeve devices feature an innovative arc-snuffing design that enables large power loads to be disconnected under load without causing an arc flash in the area

Specifications:

Type: Circuit Breaking, Compressor, Conveyor, Motor Generator Set, Polarized, Welder
Constructional Feature: Corrosion Resistant, Dirt Tight, Dust Tight, Water Tight, Moisture Resistant, Weatherproof
Voltage Rating: 600 Volt AC at 50 to 400 Hertz, 250 Volt DC
Current Rating: 100 Amp
Number of Poles: 4
Number of Wires: 4
Grounding Style: 1, Shell
Minimum Cable Outer Diameter: 0.875 Inch
Maximum Cable Outer Diameter: 1.7 Inch
Material: Natural Copper-Free Aluminum
Approval: UL 514/1010/1203/1682/1686, CSA C22.2, CE
