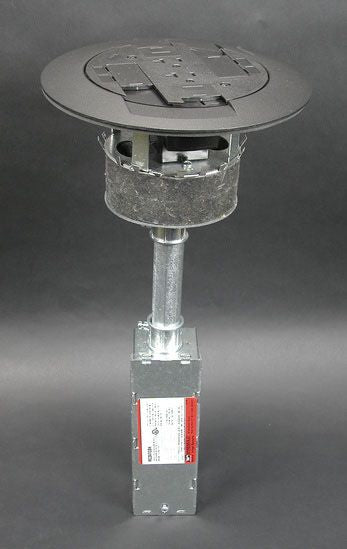

Assembled Unit; Prewired 20 Ampere Duplex Receptacle can be Wired as a Standard Duplex Receptacle or Isolated Ground; Slide Covers Match the Painted Flange Colors Gray, Black and Ivory; Aluminum and Brass Flanges Shipped with Black Slide Cover; Assembled with Scrub Water Gasket; For Use on Tile or Carpet Floors; Rc3 Series Poke-Through Devices Require a 4 Inch Diameter Hole; Not Designed to Work with Bare Concrete or Terrazzo; Floor Covering Thickness 1/8 Inch Minimum; RoHS Compliant

Specifications:

Type: Flush, Multi-Service
Cover/Service Head Configuration: 20 Ampere Duplex Receptacle/Isolated Ground, (4) Discrete Keystone Connector
Receptacle Current Rating: 20 Ampere
Junction Box Included: Yes
Capacity: 24.5 Cu Inch
Cored Hole Diameter: 4 Inch
Color: Black (Flange)
Size: 7-1/2 Inch Dia x 16 Inch H
Cover Mounting: Carpet/Tile Floor
Approval: UL (Canada and US)
