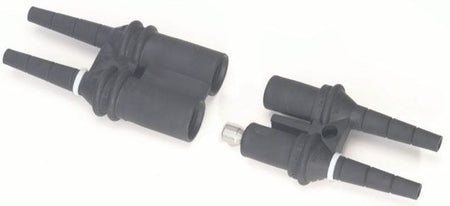

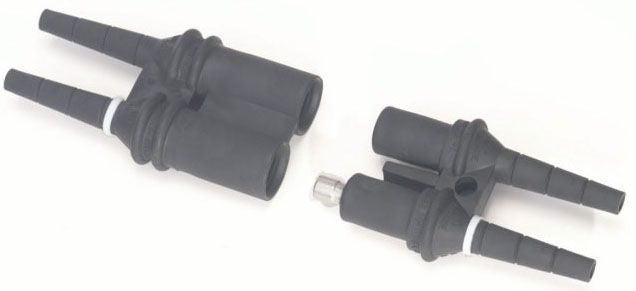

Buchanan Breakaway Connector Kits are designed for use in highway lighting, area lighting, flood lighting, and power distribution circuits in the wire range of #14 to #2 AWG. The kits install easily in 5 minutes or less using only a knife, wire stripper, and crimp tool - eliminating the need for special equipment, potting, tape, extra crimp inserts, resins, and cure time.The built in "breakaway" design prevents broken wires and the de-energization of a complete circuit when one component, such as a light standard, fails due to vehicular impact. The kits separate safely under tension, retaining the fuse in the harmless load side, eliminating danger and electrical shock.

Specifications:

Type: Breakaway Dual In-Line Kit
Voltage Rating: 600 V
Current Rating: 1/10 to 30 Ampere
Construction: Double Ridge (Line), Single Ridge (Load), Fused
Connector Type: Pin
Approval: CSA
