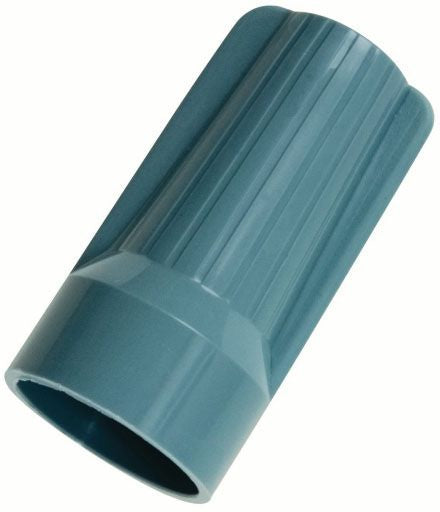

IDEAL Electrical B4-B Wire Connector
Couldn't load pickup availability
The B-CAP Wire Connector gets you in those hard-to reach spots comfortably, especially when you’re retrofitting or updating. Slim, classic fins and an expanding interior spring give the B-CAP a secure grip with extra leverage, making it the most compact connector on the market for up to 5 #12 (Red Model B2). The unique, space-saving profile of the B-CAP makes it perfect for retrofit work and shallow boxes. The B-CAP also features a tough, flame-retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands. Additionally, the B-CAP can be removed for repeat usage on the same size or larger wire combinations.
Specifications:
Type: Fin
Voltage Rating: 600 V
Wire Type: Copper
Wire Size: 14 to 6 AWG
Minimum Wire Combination Size: (2) #12
Maximum Wire Combination Size: (2) #6
Spring Type: Live Action, Square Wire
Color: Blue/Gray
Temperature Rating: 221 Deg F
Standard Package: 2500 per Keg
Approval: UL, CSA, CE
