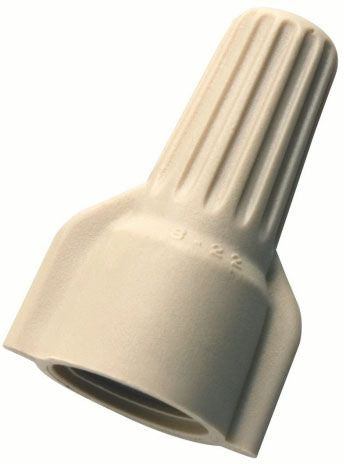

With a full line for virtually every wire size and combination, the WingTwist Wire Connector offers a great combination of performance and value. The contoured wing design of the WingTwist provides maximum torque for a variety of electrical applications while the copolymer shell and live-action spring expand for smooth, progressive tightening providing dependable connections. With a tough, flame-retardant shell that withstands environmental extremes, and a long, deep skirt to provide maximum dielectric protection to prevent flash-over and turned-back strands, the WingTwist Wire Connector brings comfort and performance at a price that is right. The Combination WireTwist/WingTwist Kit offers one easy solution for all your twist-on wiring needs. This 620-piece kit features an assortment of all models and sizes of WireTwist and WingTwist Wire Connectors in a handy plastic storage case. Perfect for maintenance and small project applications where several different wire connectors are required.

Specifications:

Type: Contoured Wing
Voltage Rating: 600 V
Wire Type: Copper
Wire Size: 22 to 10 AWG
Minimum Wire Combination Size: (2) #20
Maximum Wire Combination Size: (3) #10 Solid
Spring Type: Expanding Square Wire
Color: Tan
Temperature Rating: 221 Deg F
Standard Package: 100 per Box
Approval: UL, CSA
