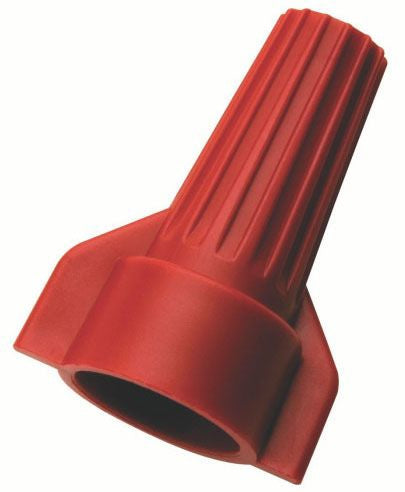

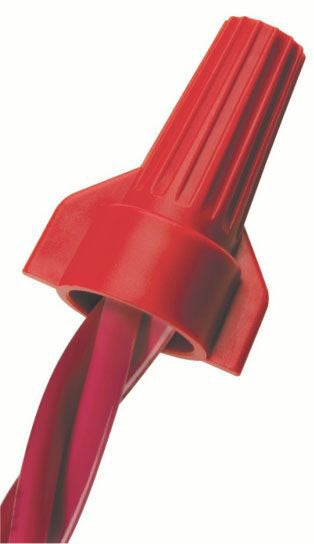

Buchanan Construction Products WT52-500JR Twist-On Wire Connector

Out of stock
SKU: 68834
Regular price $0.07

With a full line for virtually every wire size and combination, the WingTwist Wire Connector offers a great combination of performance and value. The contoured wing design of the WingTwist provides maximum torque for a variety of electrical applications while the copolymer shell and live-action spring expand for smooth, progressive tightening providing dependable connections. With a tough, flame-retardant shell that withstands environmental extremes, and a long, deep skirt to provide maximum dielectric protection to prevent flash-over and turned-back strands, the WingTwist Wire Connector brings comfort and performance at a price that is right. The Combination WireTwist/WingTwist Kit offers one easy solution for all your twist-on wiring needs. This 620-piece kit features an assortment of all models and sizes of WireTwist and WingTwist Wire Connectors in a handy plastic storage case. Perfect for maintenance and small project applications where several different wire connectors are required.


Type: Contoured Wing
Voltage Rating: 600 Volt, 1000 Volt (Fixture/Sign)
Wire Type: Copper
Wire Size: 18 to 10 AWG
Minimum Wire Combination Size: (2) #4
Maximum Wire Combination Size: (5) #12
Spring Type: Expanding, Square Wire
Shell Material: Thermoplastic Polyester
Color: Red
Temperature Rating: 105 Deg C
Standard Package: 500 per Jar
Approval: UL 486A, CSA C22.2
