Market-leading circuit protection — Designed for superior safety, quality, and reliability. Engineered with the quality and craftsmanship that have made Square D the preferred brand of electrician and homeowners.

Specifications:

Type: Thermal Magnetic
Number of Poles: 1
Voltage Rating: 120/240 VAC at 50/60 Hz
Current Rating: 20 Ampere
Interrupting Rating: 10 Kiloampere
Terminal Type: Pressure Plate
Wire Size: 14 to 8 AWG (Aluminum/Copper), (2) 14 to 10 AWG (Copper)
Mounting: Plug On
Used On: QO Load Center, NQOD Panelboard, OEM Interior/Speed-D Switchboard Distribution Panel

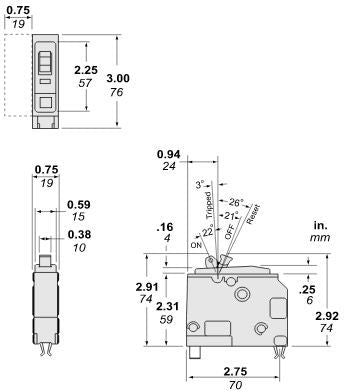

Size: 0.75 Inch W x 2.91 Inch D x 3 Inch H
Approval: UL, CSA
