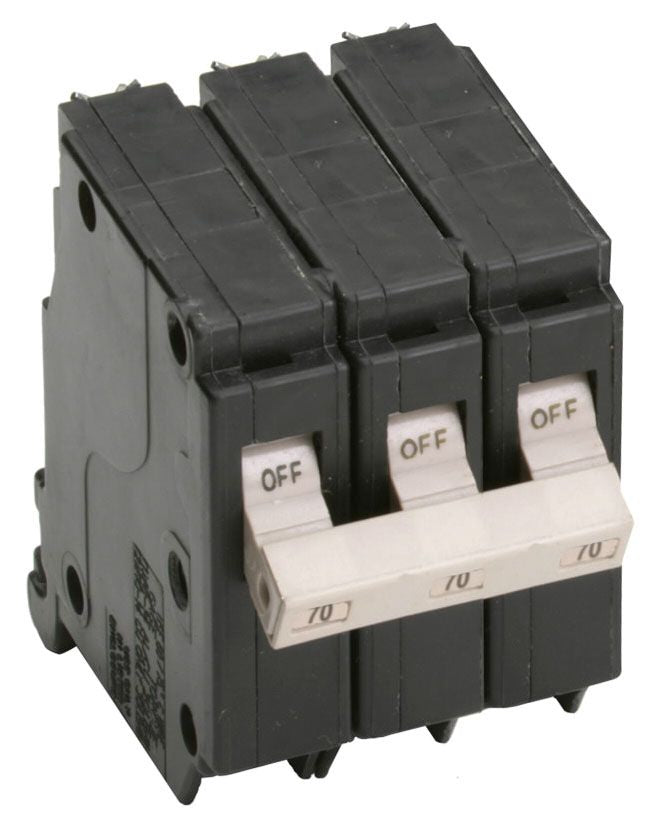

Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.

Specifications:

Type: Thermal Magnetic, Common Trip, Branch
Number of Poles: 3
Voltage Rating: 240 Volt AC
Current Rating: 70 Amp
Interrupting Rating: 10 Kiloamp
Terminal Type: Box Lug
Wire Size: 10 to 1/0 AWG (Copper/Aluminum)
Mounting: Plug-In
Used On: CH Series Load Center
Approval: UL 489, CSA
