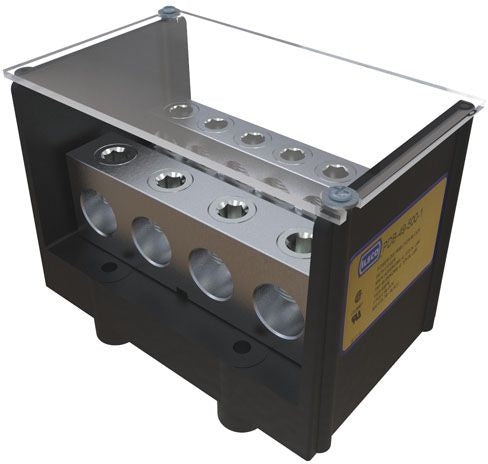

Ilsco PDB-49-500-1 Power Distribution Block

Multiple Taps; Valox Insulating Base; Three Different Connector Configurations Provide a Wide Range of Tapping Capabilities for up to Four Primary Conductors; Provides a High Degree of Impact Resistance with Superior Insulating Qualities; Permits Visual Inspection; Ensures Reliability; Provides Low Contact Resistance; Suitable for Use with Either Copper or Aluminum Conductors; RoHS Compliant

Specifications:

Type: Standard
Voltage Rating: 600 Volt
Current Rating: 1520 Amp
Number of Poles: 1
Number of Primary Openings per Pole: 4
Primary Opening Wire Size: 4 AWG to 500 KCMIL
Number of Secondary Openings per Pole: 9
Secondary Opening Wire Size: 6 AWG to 350 KCMIL, 6 to 4/0 AWG
Conductor Material: Copper/Aluminum
Cover Type: Clear
Size: 6-7/32 Inch Width x 4 Inch Depth x 4-3/8 Inch Height
Temperature Rating: 90 Deg C
Connector Material: Electro-Tin Plated 6061-T6 Aluminum Alloy
Approval: UL, CSA
