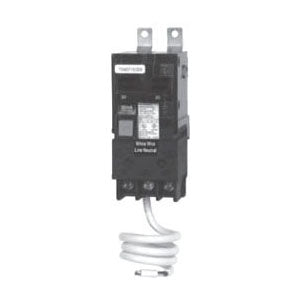

Provides Class a (5 Milliamp) Ground Fault Protection; Intended for Personnel Protection; De-Energizes the Circuit for All Ungrounded Conductors of the Circuit

Specifications:

Type: Thermal Magnetic, Circuit Protector
Number of Poles: 2
Voltage Rating: 120/240 VAC
Current Rating: 30 Ampere
Interrupting Rating: 10 Kiloamp
Trip Sensitivity: 5 Milliamp
Terminal Type: Load Lug
Wire Size: 14 to 10 AWG (Copper), 12 to 8 AWG (Aluminum)
Mounting: Bolt-On
Used On: Loadcenter, P1/P2/P3/P4/P5 Panelboard
Size: 2 Inch Width
Approval: UL 489/943, CSA C22.2
