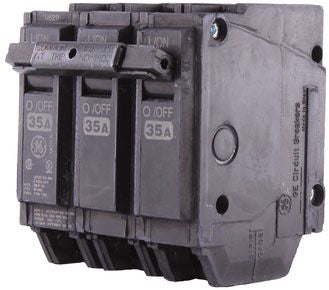

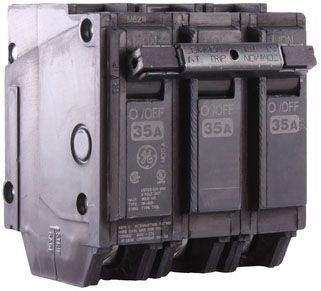

Q-Line Circuit Breakers are 1-Inch Wide per Pole, Compact, Thermal-Magnetic Devices Designed for Residential and Commercial Applications; The QL Breakers are Plug-In Versions of the Q-Line Used for Connection to Load Centers and Lighting Panels; All Q-Line Circuit Breakers Feature Quick-Make/Quick-Break Mechanisms, Common Trip Bars and Easy to Spot Trip Indication to Ensure Safety and Reliability

Specifications:

Type: Molded Case, Fixed Thermal Magnetic, Internal Common Trip
Number of Poles: 3
Voltage Rating: 240 VAC
Current Rating: 35 Ampere
Interrupting Rating: 10 Kiloampere
Terminal Type: Copper/Aluminum Load Lug, Plug-In
Wire Size: 8 to 3 AWG (Copper/Aluminum)
Mounting: 1 Inch Plug-In
Used On: AL Series Panelboard
Size: 3 Inch W x 2-3/8 Inch D x 3-9/32 Inch H
Approval: UL
