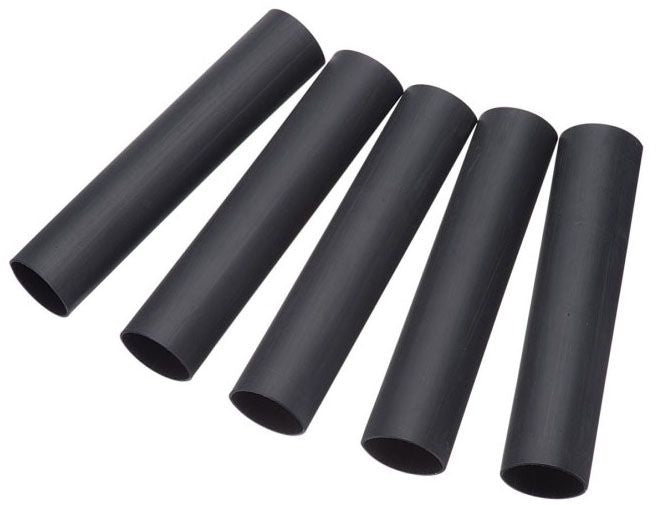

Adhesive Liner Provides Complete Insulation and Protection to Electrical Splices in Above Grade, Underground or Underwater Applications; Maximum Flame Retardancy; Non-Corrosive Effect; No Growth Fungus Resistance

Specifications:

Type: Heat
Voltage Rating: 600 V
Cable Size: 3/0 AWG to 400 KCMIL
Wall Type: Heavy
Shrink Temperature: 120 to 250 Deg C
Material: Cross Linked Polyolefin
Shrink Ratio: 12/30/1899 3:01:00 AM
Minimum Expanded Diameter: 1.5 Inch
Maximum Recovered Diameter: 0.47 Inch
Length: 9 Inch
Thickness: 0.16 Inch
Temperature Rating: -55 to 110 Deg C
Approval: UL 486D, CSA C22.2
