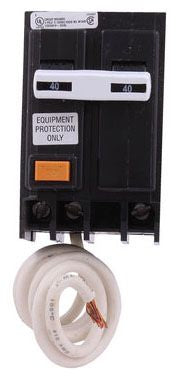

Q-Line Circuit Breakers are 1-Inch Wide per Pole, Compact, Thermal-Magnetic Devices Designed for Residential and Commercial Applications; The QB Breakers are Bolt-On Versions of the Q-Line Used for Bolting to the Bus Connections of Load Centers and Lighting Panels; All Q-Line Circuit Breakers Feature Quick-Make/Quick-Break Mechanisms, Common Trip Bars and Easy to Spot Trip Indication to Ensure Safety and Reliability

Specifications:

Type: Thermal Magnetic, Equipment Protector, Common Trip
Number of Poles: 2
Voltage Rating: 120/240 Volt AC, 208 Volt AC Star/120 Volt AC
Current Rating: 40 Amp
Interrupting Rating: 10 Kiloamp
Trip Sensitivity: 30 Milliamp
Wire Size: 14 to 8 AWG (Copper), 12 to 8 AWG (Aluminum)
Mounting: 1 Inch Bolt-On
Used On: Q-Line Loadcenter, Lighting Panel
Size: 2 Inch Width x 2-3/8 Inch Depth x 3-9/32 Inch Height
Approval: UL, UL (Canada and US), CSA
