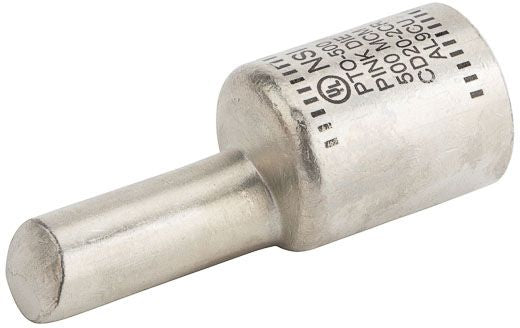

NSi Industries PTO-500 Compression Connector Pin Terminal
Regular price
$0.58
Couldn't load pickup availability
Pin is Offset for Use in Tight Applications While Providing Ease of Installation in Side by Side Applications; The Solid Pin is Made of Aluminum and is Tin Plated and Pre-Filled with Oxide Inhibitor; Great for Paralleling Cable; A Cover is Provided for Quick Insulation
Specifications:
Type: Offset
Voltage Rating: 600 V
Conductor Material: Aluminum/Copper
Conductor Size: 500 KCMIL Stranded
Material: Tin Plated Aluminum
Insulation Type: Plastisol Insulated
Pin Size: 0.68 Inch Dia x 1.69 Inch L
Cover Size: 1.32 Inch Dia x 1.71 Inch L
Overall Length: 3.39 Inch
Approval: UL 486A/B, UL (Canada and US)
