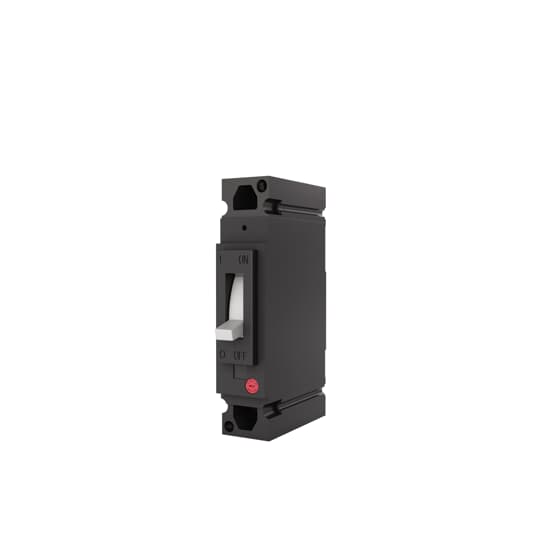

The E150 Product Line Consists of Thermal Magnetic Circuit Breakers, Magnetic Circuit Breakers and Molded-Case Switches Rated up to 150 Amps and 600 Volts AC; Catalog Numbers Include the Complete Breaker or Switch; The WL Catalog Number Suffix Indicates that the Devices Come with Cu/Al Line and Load Lugs; All TED Breakers Suitable for Reverse Feed

Specifications:

Type: Molded Case, Thermal Magnetic
Frame Type: TED
Voltage Rating: 277 V
Maximum AC Voltage Rating: 480 V
Maximum DC Voltage Rating: 125 V
Current Rating: 40 Ampere
Number of Poles: 1
Interrupting Rating: 14 Kiloampere at 277 VAC, 10 Kiloampere at 480 VAC/125 VDC
Terminal Type: Copper/Aluminum Line and Load Lug
Size: 1-3/8 Inch W x 3-3/8 Inch D x 6-5/16 Inch H
Approval: UL, CSA
