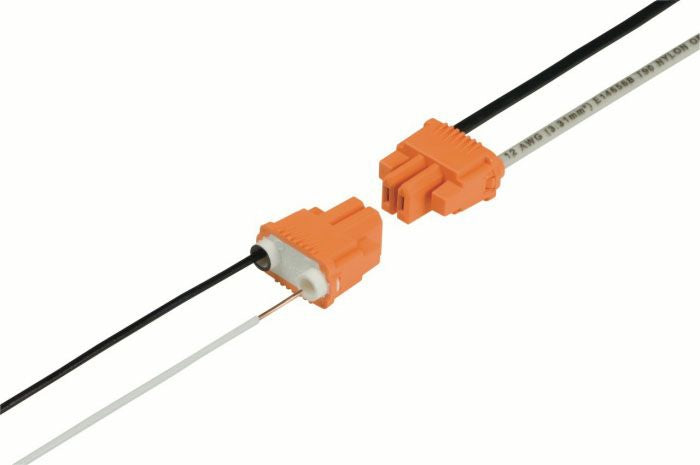

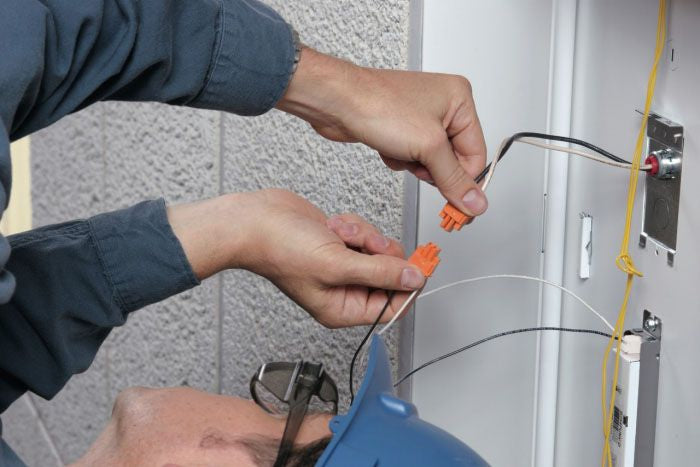

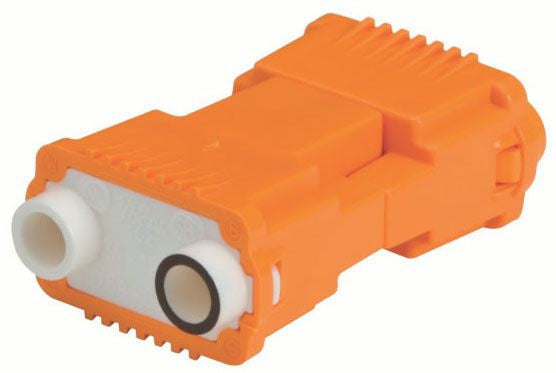

The IDEAL PowerPlug Luminaire Disconnect fully meets the current National Electric Code and Canadian Electric Code for non-residential fluorescent luminaires. The PowerPlug helps reduce electrical shock hazard during ballast replacement by safely disconnecting hot and neutral ballast wiring. Both halves of PowerPlug meet UL and CSA finger-probe safety requirements. Advanced push-in technology provides fast, efficient ballast connections resulting in reduced installation time and improved labor savings. The PowerPlug is available in 2-pole and 3-pole models with options for new installation or ballast retrofitting.

Specifications:

Voltage Rating: 600 Volt
Wire Size: 18 to 12 AWG Solid, 14 to 12 AWG (19 Strands) Stranded, 14 to 12 AWG (19 Strands), 16 AWG (26 Strands), 18 AWG (16 Strands) Tin-Bonded Stranded
Number of Ports: 2
Material: Nylon
Color: Orange/White
Temperature Rating: 105 Deg C
Standard Package: 1000 per Box
Approval: UL 2459, CSA C22.2
