1-Piece Interior Removes and Reinstalls Easily; Full-Length Neutrals are Easier to Wire Reducing Installation Time and Cost; Minimum 100% Neutral Terminations; Sturdy Copper Bus and Galvanized Box Increase Durability and Reliability; Main Breaker Configuration Allows Top or Bottom Feed without Modification; Combination Slotted/Robertson Square-Drive Speeds Screw Wiring; 100% Rated Split Neutral on Each Side; Tie Bar May be Removed to Split Neutral/Ground

Specifications:

Type: Main Breaker
Voltage Rating: 120/240 Volt AC
Current Rating: 100 Amp
Circuit Configuration: 1-Phase 3-Wire
Maximum Number of Circuits: 12
Maximum Number of Spaces: (12) 1-Pole 1 Inch THQL/(6) 2-Pole 1 Inch THQL/(24) 1-Pole 1/2 Inch THQP/(10) 2-Pole 1/2 Inch THQP
Main Breaker Type: THQL/THQP
Breaker Mounting: Plug-In
Interrupting Rating: 22 Kiloamp
Neutral Type: Split
Bus Material: Tin Plated Copper
Feed Location: Top/Bottom
Main Wire Size: 4 to 1/0 AWG (Copper/Aluminum)
Enclosure Type: NEMA 1, Indoor

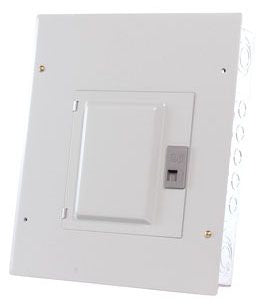

Cover Type: Flush/Surface
Enclosure Size Designation: 18
Size: 14 Inch Width x 3-3/8 Inch Depth x 16 Inch Height
Approval: UL
