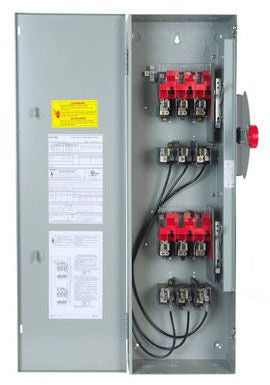

Designed for Commercial and Industrial Applications Where Safety, High Performance and Continuity of Service are Essential; Listed to UL Standard 98 Enclosed and Dead Front Switches; Suitable for Use as Service Equipment When Installed in Accordance with the National Electrical Code; Suitable for Use as Transfer Equipment in Standby Systems in Accordance with Article 702 of the National Electrical Code; 60/75 Deg C Conductor Rating; Full Cover Interlocks

Specifications:

Type: Transfer, Service Entrance Equipment
AC Voltage Rating: 240/480/600 V
DC Voltage Rating: 250 V
Current Rating: 400 Ampere
Power Rating: 125 HP at 240/600 VAC 3-Phase, 100 HP at 480 VAC 3-Phase (Time Delay), 50 HP at 250 VDC
Number of Poles: 3
Number of Wires: 3
Fuse Provision: Fusible
Neutral Type: No
Enclosure: NEMA 1
Size: 26.125 Inch W x 14.125 Inch D x 74.75 Inch H
Approval: UL 98
