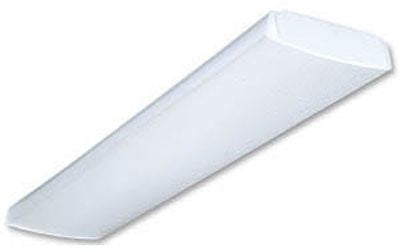

Curved Prismatic Diffuser with Linear Side Prisms Minimize Lamp Image and Provides High Angle Brightness Control; Luminous End Plates Soften Appearance for Improved Aesthetics; Continuous Side Flanges on Fixture Body Provide Light Trap and Continuous Diffuser Support to Prevent Accidental Opening and Simplify Maintenance

Specifications:

Type: Low Profile
Lamp Type: 32WT8
Number of Lamps: 4
Lamp/Ballast Voltage: 120 to 277 V
Lamp Wattage: 32 W
Lamp Length: 48 Inch
Lamp Included: No
Ballast Type: Electronic, Instant Start
Lens Type: Curved Prismatic Diffuser With Linear Side Prisms Minimize Lamp Image
Length: 48 Inch
Width: 15-1/2 Inch
Height: 2-15/16 Inch
Nominal Length: 4 Ft
Housing Material: Die Formed Code Gauge Steel
Finish: High Gloss Baked White Polyester Enamel
