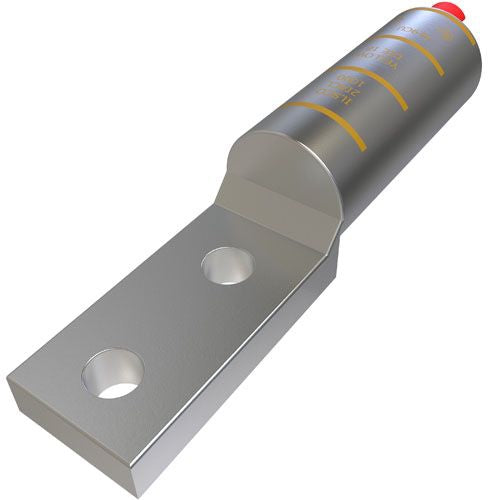

Ilsco 2IACL-1000 Compression Cable Lug

Manufactured from High Strength Aluminum Alloy Provides Maximum Conductivity and Excellent Crimping Characteristics; Chamfered Barrel Provides Easy Conductor Insertion; Prefilled with De-Ox Prevents Oxides from Forming; Color Coded End Caps Inserted in Barrel and Roll Marked with Die Number and Number of Crimps Prevents Foreign Materials from Entering the Connector Prior to Usage and Color Code Identifies the Proper Compression Die; Electro Tin Plated Provides Low Contact Resistance; RoHS Compliant

Specifications:

Voltage Rating: 35 KV
Conductor Material: Aluminum
Conductor Size: 1000 KCMIL
Barrel Length: 3.1875 Inch
Pad Size: 3.25 Inch L x 1.6094 Inch W x 0.562 Inch Thk
Number of Pad Holes: 2
Pad Hole Spacing: 1-3/4 Inch
Stud Size: 1/2 Inch
Color: Yellow
Die Index: 18
Material: Electro-Tin Plated Aluminum Alloy
Overall Length: 7.25 Inch
Approval: UL 453G, UL 486A/B, CSA
