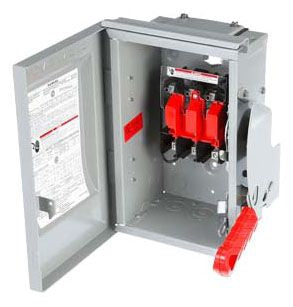

Rugged Construction, Reliable Performance, Continuity of Service and Ease of Maintenance are Emphasized; Available Fault Currents Higher than 10000 Amp are Likely to be Encountered, Such as in Manufacturing Plants, Mass Production Industries, and Commercial, Institution-AL and Other Large Buildings Served by Network Systems or Transformers of Higher Capacities; Voidable Dual Cover Interlocks Standard on All Heavy Duty Switches

Specifications:

Type: Non-Fusible, Heavy Duty
Voltage Rating: 480/600 Volt AC, 250 Volt DC
Current Rating: 30 Amp
Power Rating: 5 HP at 240 Volt AC 1-Phase, 10 HP at 240 Volt AC 3- Phase, 7-1/2 HP at 480 Volt AC 1-Phase, 20 HP at 480 Volt AC 3-Phase, 10 HP at 600 Volt AC 1-Phase, 30 HP at 600 Volt AC 3-Phase, 5 HP at 250 Volt DC
Circuit Configuration: 1 or 3 Phase
Number of Poles: 3
Fuse Type: Class H, Class K, Class R
Operator Type: Insulating Grip
Conductor Material: Copper/Aluminum
Conductor Size: 14 to 6 AWG
Enclosure Material: 304 Stainless Steel
Enclosure Type: NEMA 3R
Terminal Type: Lug
Size: 6.64 Inch Width x 5.05 Inch Depth x 11.11 Inch Height
Approval: UL
