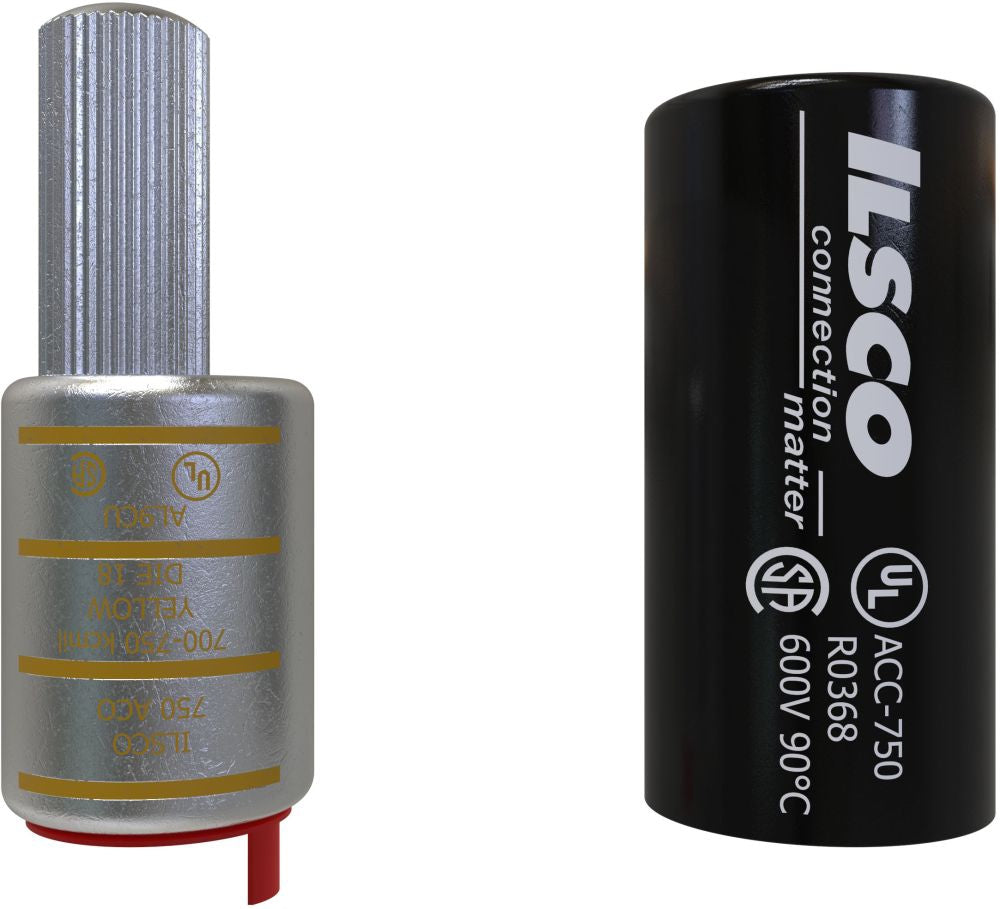

Ilsco ACO-750 Pigtail Adapter

Manufactured from High Strength Aluminum Alloy Provides Maximum Conductivity and Excellent Crimping Characteristics; Pin is Knurled Permits Greater Surface Contact; Pin is Off Center Allows Connectors to be Rotated for Parallel Applications, Multiple Conductor Lugs Hole Spacing Does Not Permit Insertion of Straight Pin Connectors; Chamfered Barrel Provides Easy Conductor Insertion; Clearly Marked with Wire Size and Die Index for ILSCO Tools, Proper Number and Location of Crimps Provides Easy Identification and Tooling Recommendation; Prefilled with De-Ox Prevents Oxides from Forming; Color Coded End Caps Inserted in Barrel Prevents Foreign Materials from Entering the Connector Prior to Usage and Color Code Identifies the Proper Compression Die; Eliminates Taping; Ensures Reliability for Aluminum or Copper Conductors; RoHS Compliant

Specifications:

Type: Offset Pigtail
Voltage Rating: 600 V
Conductor Material: Copper/Aluminum
Conductor Size: 700 to 750 KCMIL
Material: High Strength Aluminum Alloy
Pin Size: 13/16 Inch Dia x 1-49/64 Inch L
Cover Size: 3-1/4 Inch L
Overall Length: 3-51/64 Inch
Approval: UL 486A/B, CSA
