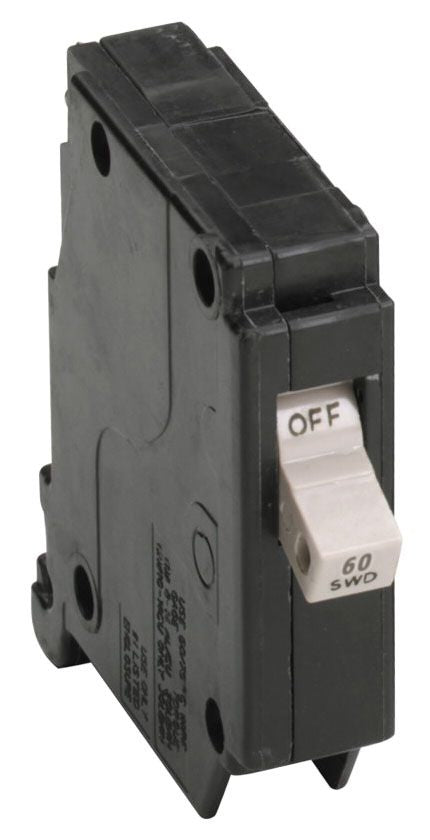

Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.

Specifications:

Type: Thermal Magnetic
Number of Poles: 1
Voltage Rating: 120/240 VAC
Current Rating: 60 Ampere
Interrupting Rating: 10 Kiloampere
Wire Size: 10 to 1/0 AWG (Aluminum/Copper)
Mounting: Plug-On
Used On: CH Series Loadcenter
Approval: UL 489, CSA
