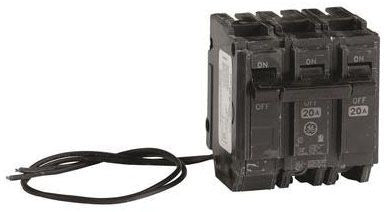

Q-Line Circuit Breakers are 1-Inch Wide per Pole, Compact, Thermal-Magnetic Devices Designed for Residential and Commercial Applications; The QL Breakers are Plug-In Versions of the Q-Line Used for Connection to Load Centers and Lighting Panels; All Q-Line Circuit Breakers Feature Quick-Make/Quick-Break Mechanisms, Common Trip Bars and Easy to Spot Trip Indication to Ensure Safety and Reliability

Specifications:

Type: Fixed Thermal Magnetic, Internal Common Trip
Number of Poles: 2
Voltage Rating: 120/240 Volt AC
Current Rating: 20 Amp
Interrupting Rating: 10 Kiloamp
Terminal Type: Load Lug
Wire Size: 14 to 8 AWG (Copper), 12 to 8 AWG (Aluminum)
Mounting: 1 Inch Plug-In
Used On: AL Series Panelboard
Size: 2 Inch Width x 2-3/8 Inch Depth x 3-9/32 Inch Height
Approval: UL
