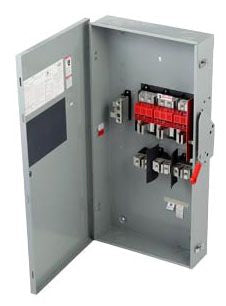

Type-1 Enclosures are Intended for Indoor Use Primarily to a Provide Protection Against Contact with the Enclosed Equipment in Locations where Unusual Service Conditions do not Exist; General Duty Switches are Intended for Applications where Reliable Performance and Continuity of Service are Needed

Specifications:

Type: Fusible, General Duty
Voltage Rating: 240 Volt AC, 250 Volt DC
Current Rating: 400 Amp
Power Rating: 15 HP at 240 Volt AC 1-Phase, 50 HP at 240 Volt AC 3-Phase, 50 HP at 250 Volt DC
Circuit Configuration: 1-Phase 2-Wire, 3-Phase 3-Wire
Number of Poles: 3
Fuse Type: Class H, Class K, Class R
Operator Type: Padlock-Off Handle
Conductor Material: Copper/Aluminum
Conductor Size: (1) 1/0 AWG to 600 KCMIL, (2) 1/0 AWG to 500 KCMIL
Enclosure Type: NEMA 1
Terminal Type: Lug
Size: 22.4 Inch Width x 6.94 Inch Depth x 45.32 Inch Height
Approval: UL
