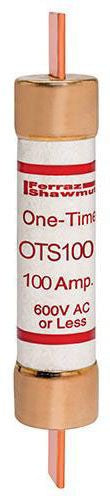

Mersen EP OTS100 Low Voltage UL Power Fuse

One-Time OT general purpose fuses provide low cost protection for feeder and branch circuits serving lighting, heating and other non-motor loads. OT fuses will safely interrupt available short circuit currents up to 50000 amperes in all ratings. OT fuses are not rejection fuses - care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses.

Specifications:

Type: Class K5
Characteristics: Fast Acting
Voltage Rating: 600 Volt AC, 300 Volt DC
Current Rating: 100 Amp
Interrupting Rating: 50 Kiloamp (AC), 20 Kiloamp (DC)
Terminal Type: Blade
Diameter: 1-5/16 Inch
Length: 7-7/8 Inch
Approval: UL 248/248-9, CSA C22.2
