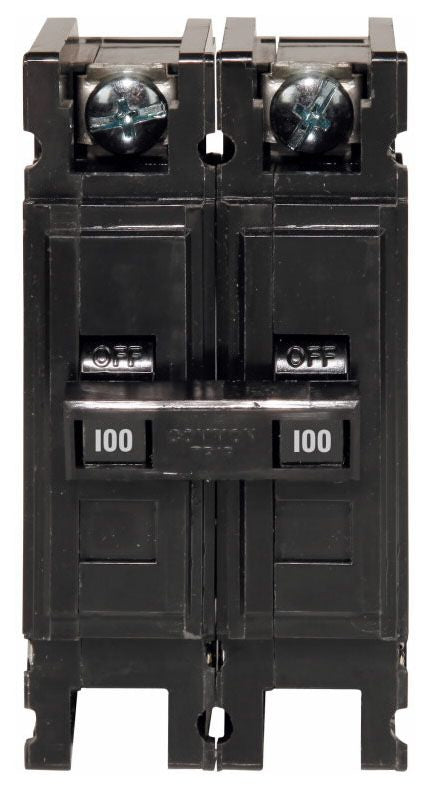

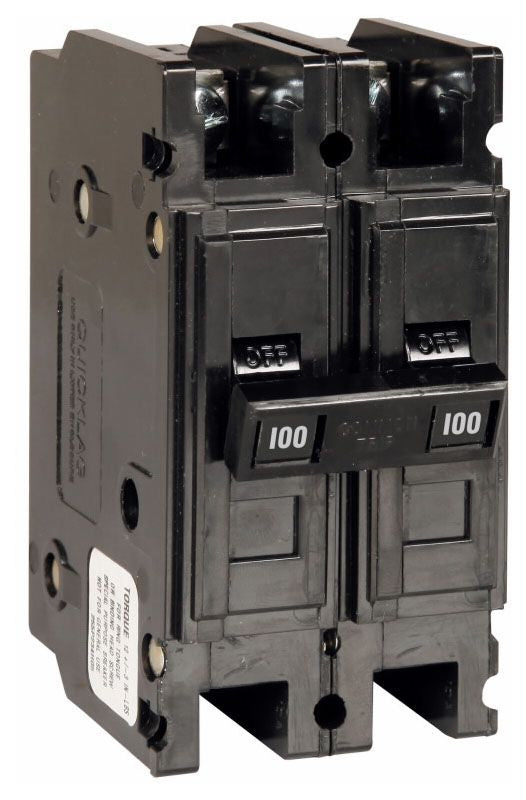

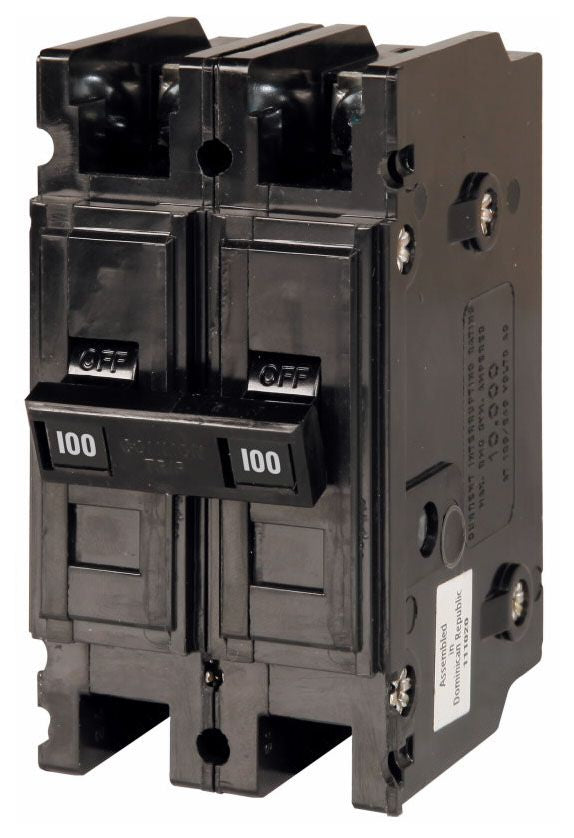

Eaton has a wide selection of UL rated miniature circuit breakers for loadcenters, fuseboxes, or similar devices. Each pole provides steel frame calibration and arc chutes with 5 - 100A continuous in one-, two-, and three-pole designs. A full-range of accessories expand customization options, including various mounting and ring tung termination options.

Specifications:

Type: Thermal Magnetic
Number of Poles: 2
Voltage Rating: 120/240 VAC
Current Rating: 100 Ampere at 40 Deg C
Interrupting Rating: 10000 Ampere at 120/240 VAC, 5000 Ampere at 24 to 48/62.5/80 VDC
Terminal Type: Box Lug
Wire Size: 8 to 1/0 AWG Aluminum/Copper (Load)
Mounting: Cable-In, Cable Out
Approval: UL 489, CSA
