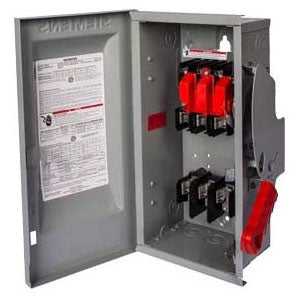

Quick-Make, Quick-Break Operating Mechanism that Ensures Positive Operation; Visible Blade, Double-Break Switching Action; Arc Chutes Dissipate Heat and Prolong Switch Life; Highly Visible Red Handle Grip; Designed for Hook Stick Operation; Defeatable Dual Cover Interlock; Center Punch Provided for Field Drilling to Allow on Padlocking; Handle Can be Padlocked in the Off Position with up to (3) Padlocks with 5/16 Inch Hasps; Generous Top, Bottom and Side Gutters that Meet or Exceed NEC Wire-Bending Space Requirements; Informative Door Labeling Which Includes Replacement Parts List; Tangential Knockouts Through 600 Amp for Easy Conduit Lineup; Side-Hinged Door that Opens Past 180 Degrees for Easier Wiring; Unique Enclosure Design Increases Rigidity and Prevents Cuts and Scrapes to Conductors and Installer's Hands; Spring Reinforced Fuse Clips that Assure Reliable Contact for Cool Operation; Door Latch Securely Holds Door Closed and Allows Cover Padlocking; Lugs are Field Convertible to Copper Body and to a Wide Variety of Compression Connectors; Hinged Clear Line Terminal Shield with Probe Holes for Inspecting or Testing Line Side Terminals; Embossed Aluminum Nameplate on Heavy Duty Switches Provides Highly Visible On/Off Indication; Drawn Cover for Increased Rigidity and Resistance to Abuse

Specifications:

Type: Heavy Duty Safety
AC Voltage Rating: 240/480/600 Volt
DC Voltage Rating: 250/600 V
Current Rating: 100 Ampere
Power Rating: 15 HP at 240 Volt AC, 30 HP at 480 Volt AC, 40 HP at 600 Volt AC 1-Phase, 40 HP at 240 Volt AC, 75 HP at 480 Volt AC, 100 HP at 600 Volt AC 3-Phase, 20 HP at 250 Volt DC, 50 HP at 600 Volt DC
Number of Poles: 3
Number of Wires: 3
Fuse Provision: Non-Fusible
Neutral Type: No
Enclosure: NEMA 3R
Size: 11.97 Inch Width x 10.17 Inch Depth x 23.46 Inch Height
Approval: UL 98
