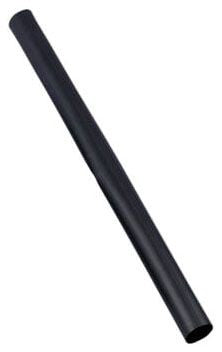

The Splice Kit UF Series consists of a connector insulation assembly and a heat shrink tube. The connector assembly contains four cylindrical set screw connectors separated by a piece of vinyl insulation. The heat shrink tube is a heavy wall, adhesive lined tube and is UL Listed and RoHS 2011/65/EU Compliant. It withstands a temperature range of 67 to 230 degrees F ( 55 to 110 degrees C).

Specifications:

Voltage Rating: 600 Volt
Cable Type: Underground Feeder
Number of Conductors: 1
Insulator Type: Heat Shrink
Connector Type: Cylindrical Set Screw
Conductor Size: 14 to 8 AWG
Number of Splices: 1
Contents: (1) 11.7 Inch Terminal Connector, (1) 20 Inch Heavy Wall, (1) Adhesive Lined Heat Shrink Tube
Approval: UL
