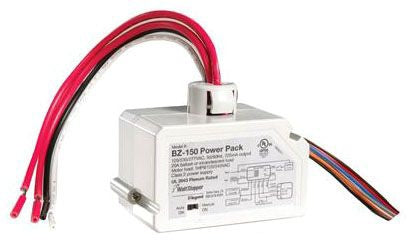

Wattstopper BZ-150 Universal Voltage Power Pack

  • Sale
  • Regular price $50.15
Shipping calculated at checkout.


Self-Contained Power Supply Relay System; Efficient Switching Power Supply Providing Optimized Current Output Based on Number of Sensor; LED Indicates Status of Relay or if there is a Low-Voltage Overcurrent; Hold-On and Hold-Off Inputs Integrate with BMS, Lighting Control Panels and other Building Systems; Integrates with Low-Voltage Momentary Switch to Control any 24 Volt DC Occupancy Sensor; Zero-Crossing Circuitry for Reliability and Increased Product Life; UL 2043 Plenum Rated for Cost-Effective Installation; 1/2 Inch Snap-In Nipple Attaches to Standard Electrical Enclosures Through 1/2 Inch Knockout; 14 AWG Wires on the Relay for 20 Amp Operation; RoHS Compliant; BAA/TAA Compliant

Specifications:

Input Voltage: 120/277 Volt AC 1-Phase
Frequency Rating: 50/60 Hertz
Output Voltage: 24 Volt DC
Output Current: 225 Milliamp
Enclosure Material: Plastic
Size: 2.75 Inch Width x 1.6 Inch Depth x 1.6 Inch Height
Operating Temperature: 0 to 55 Deg C
Used On: Occupancy and Vacancy Sensor
Approval: UL 2043, CUL
