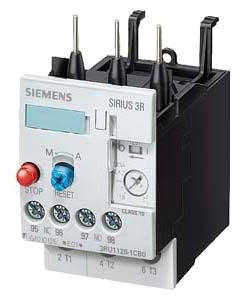

RoHS Compliant; Switching Position Indication; Test Function; Stop Button; Phase Failure Sensitivity; Integrated, Sealable Cover

Specifications:

Type: Thermal
Motor FLA: 14 to 20 Amp
Number of Poles: 3
Trip Class: Class 10
NEMA Size: S0
Reset Type: Manual/Automatic
Ambient Temperature: -20 to 70 Deg C
Auxiliary Contact: 1NO-1NC
Contact Rating: 690 Volt, 3 Amp (AC-15), 1 Amp (DC-13)
Terminal Type: Screw
Mounting: Contactor
Enclosure: IP20
Approval: UL, CSA, CCC, EAC, CE, EX, IECEX
