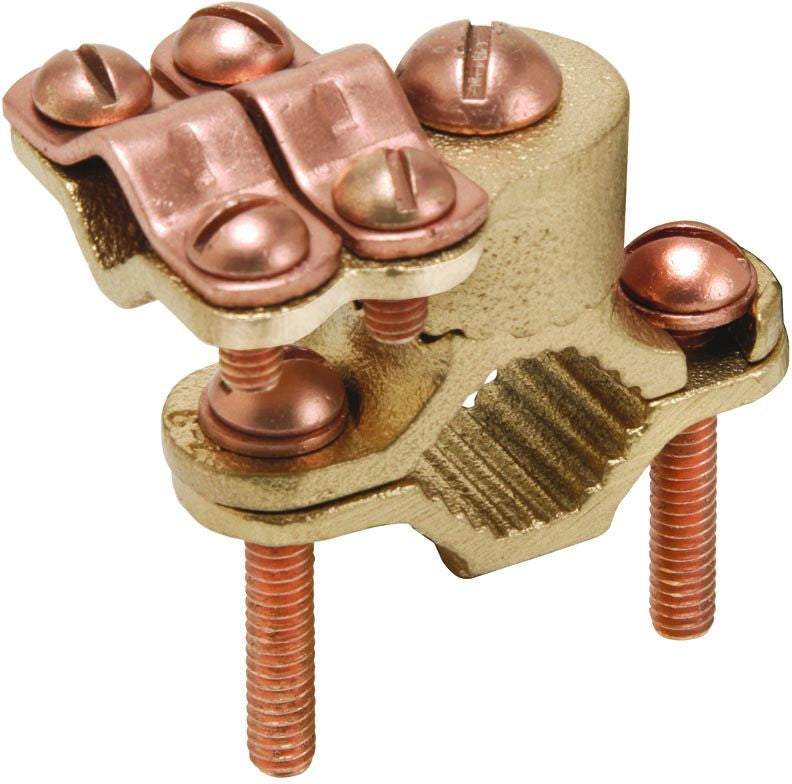

Burndy C-11HD4/0DB Mechanical Grounding Clamp Connector
Regular price
$16.67
Couldn't load pickup availability
For Connecting Grounding Conductor, EMT or Rigid Conduit to Water Pipe, Copper Tube, Ground Rod or Rebar; Hub Swings 360 Degree for Easy Alignment; Simply Reverse Bottom Clamp for Smaller Size Rebar or Rod; Connectors are Provided with Silicon Bronze Hardware; RoHS Compliant
Specifications:
Conductor Size: 8 to 4/0 AWG Stranded (Copper)
IPS Size: 1/2 to 1 Inch
Rod Size: 3/8 to 1 Inch

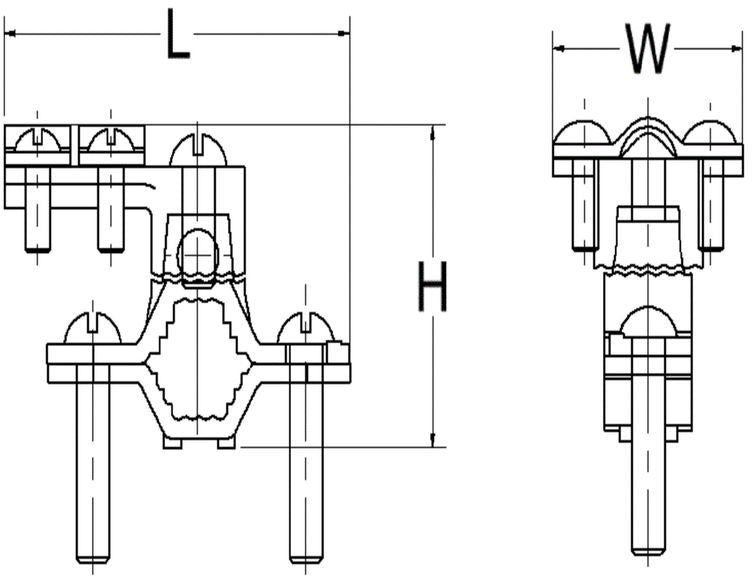

Size: 2.65 Inch L x 1.56 Inch W x 2.25 Inch H
Installation: Screw Wire Connector to Water Pipe, Hub
Material: Solid Cast Bronze Body, Zinc Plated Steel Hardware
Approval: UL
Used On: Grounding Wire/EMT/Rigid Conduit to Water Pipe/Copper Tube/Rod/Rebar, Direct Burial
