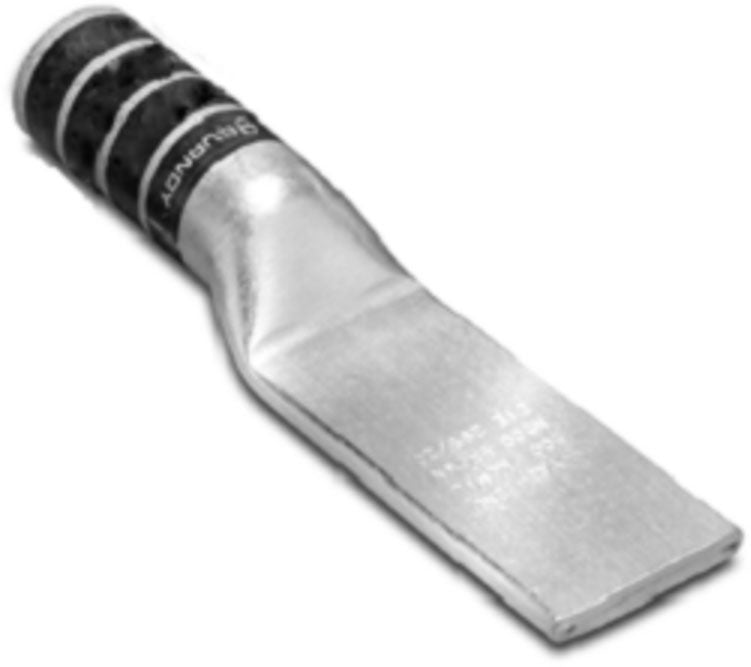

Burndy YA292NU Compression Cable Lug

The Blank Tongue line of copper code HYLUG terminals are designed to provide maximum field flexibility. Scored lines prevent the drill from walking when trying to drill in this area. . This innovative design allows the installer to customize the tongue drilling to fit their specific application while maintaining UL Listing and CSA Certification.

Specifications:

Conductor Material: Copper
Conductor Size: 250 KCMIL Stranded (Code)
Barrel Type: Long, Straight
Barrel Length: 1.62 Inch
Pad Size: 1.11 Inch W x 0.16 Inch Thk
Stud Size: 1/4 Inch
Color: Yellow
Die Index: 16
Material: Electro-Tin Plated Seamless Copper
Overall Length: 5.21 Inch
Approval: UL 468A/468B, CSA
