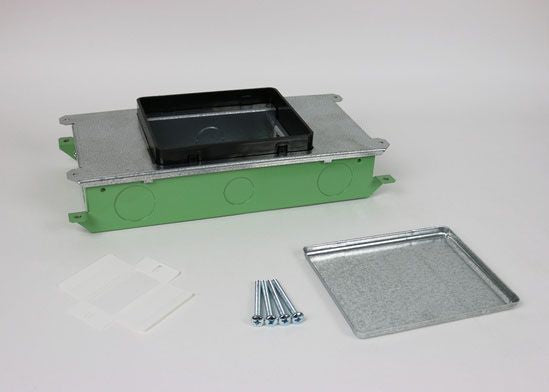

Wiremold RFB2OG Concrete Floor Box

  • Sale
  • Regular price $146.79
  • 1 available
Shipping calculated at checkout.


Rfb2-Og for On-Grade Applications is Painted with a Fusion Bonded Epoxy Designed for Use on Metal Reinforcement Bar and Related Accessories before Encapsulating in Concrete; The Rfb Series Floor Box is a Versatile Activation Solution that Provides Power and/or Communication Services to Open Space Areas or Directly to the Workstation; Fully Adjustable before and after the Concrete Pour; Labor Savings by Adapting to Various Pour Depths and Conditions; Allows for Most Conduit Schemes, Even Feed Through Capability, Which Saves Time and Money During Installation; New Floorport Activation Covers Provides Topguard Protection from Water, Dirt and Debris and has Been Redesigned for Added Strength and Durability; Shallow Version Allows Pass Around Tunneling; Flexibility in Design to have Adjacent Compartments Wired Together; Wide Variety of Mounting Brackets can Adapt to Most Power and Communication Needs; Reduces Overall Life Cycle Cost; Datacom Connectivity Options Accepts Industry Standard and Proprietary Devices from a Wide Range of Manufacturers to Provide a Seamless and Aesthetically Pleasing Interface for Voice, Data, Audio and Video Applications at the Point of Use; A Wide Selection of Data and Bezel Options Available for Use with Ortronics Tracjack and Series Ii Devices; RoHS Compliant

Specifications:

Type: Fully Adjustable, Recessed, 2-Compartment, On-Grade
Shape: Rectangular
Length: 13-1/8 Inch
Width: 6-1/2 Inch
Depth: 3-7/16 Inch
Adjustment Size: 3 Inch Minimum Depth
Material: Epoxy Painted Steel
Number of Knockouts: 14
Knockout Size: (2) 1/2 Inch Bottom, (2) 3/4 Inch Bottom, (4) 1-1/4 Inch Side, (2) 1 Inch Side, (4) 3/4 Inch Side
Number of Gangs: 2
Service Type: Multi
Capacity: 50.2 Cu Inch
Installation: Concrete/Wood Floor
Device Type: (1) Duplex Receptacle Mounting Plate and (1) Communication Mounting Plate, Communication, Power
Cover Type: FPCT, FPBT, FPFFT Series
Cover Mounting: Tile, Carpet
Approval: UL (Canada and US)
