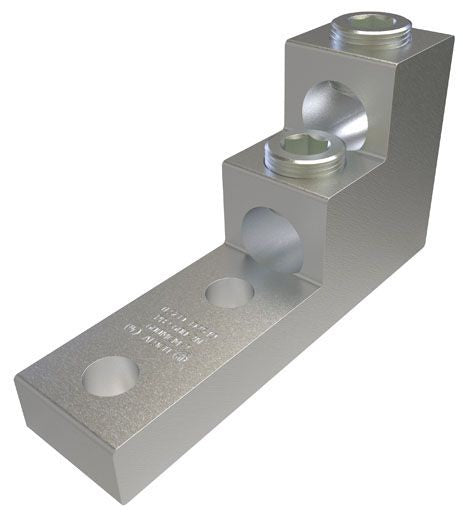

Ilsco PB2-600-2N Panelboard Lug

Manufactured from High Strength 6061-T6 Aluminum Alloy; Electro-Tin Plated; Chamfered Wire Entry; Suitable for Use in Circuits Rated 35Kv or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; Rated to 90 Deg C; Stacked Design; Suitable for Use with Either Copper or Aluminum Conductors; Provides Low Contact Resistance; Provides Ease of Installation; Saves Space and Reduces Installation Time; Versatility; RoHS Compliant

Specifications:

Type: Chamfered Wire Entry, Dual Rated, Stacked
Number of Conductors: 2
Minimum Conductor Size: 2 AWG
Maximum Conductor Size: 600 KCMIL
Conductor Material: Copper/Aluminum
Screw Type: 1/2 Inch Hex
Material: Electro-Tin Plated 6061-T6 Aluminum Alloy
Number of Pad Holes: 2
Pad Size: 3-1/8 Inch Length x 1-1/2 Inch Width x 3/4 Inch Thickness
Stud Size: 1/2 Inch
Overall Length: 5-11/16 Inch
Approval: UL 453G, UL 486A/B, CSA
