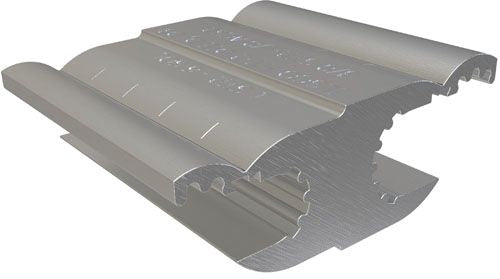

Ilsco HT-2 Compression Tap Connector

Serrated Interior; Prefilled with Oxide Inhibitor; Installed with Industry Standard "O" and "D" Die; Suitable for Use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; Rated to 90 Deg C; Assures Positive Mating with Cable Strands When Compressed; Provides Corrosion Resistance; Provides Convenient Die Selection; Provides Maximum Conductivity and Excellent Crimping Characteristics; Application Versatility; RoHS Compliant

Specifications:

Shape: H with C Groove
Conductor Material: Copper/Aluminum
Stranded Run Conductor Size: 2/0 to 3/0 AWG
ACSR Run Conductor Size: 1/0 to 2/0 AWG
Solid Tap Conductor Size: 6 to 1/0 AWG
Stranded Tap Conductor Size: 6 to 1 AWG
ACSR Tap Conductor Size: 6 to 2 AWG
Die Index: D3
Body Material: High Strength Aluminum Alloy
Approval: CSA
