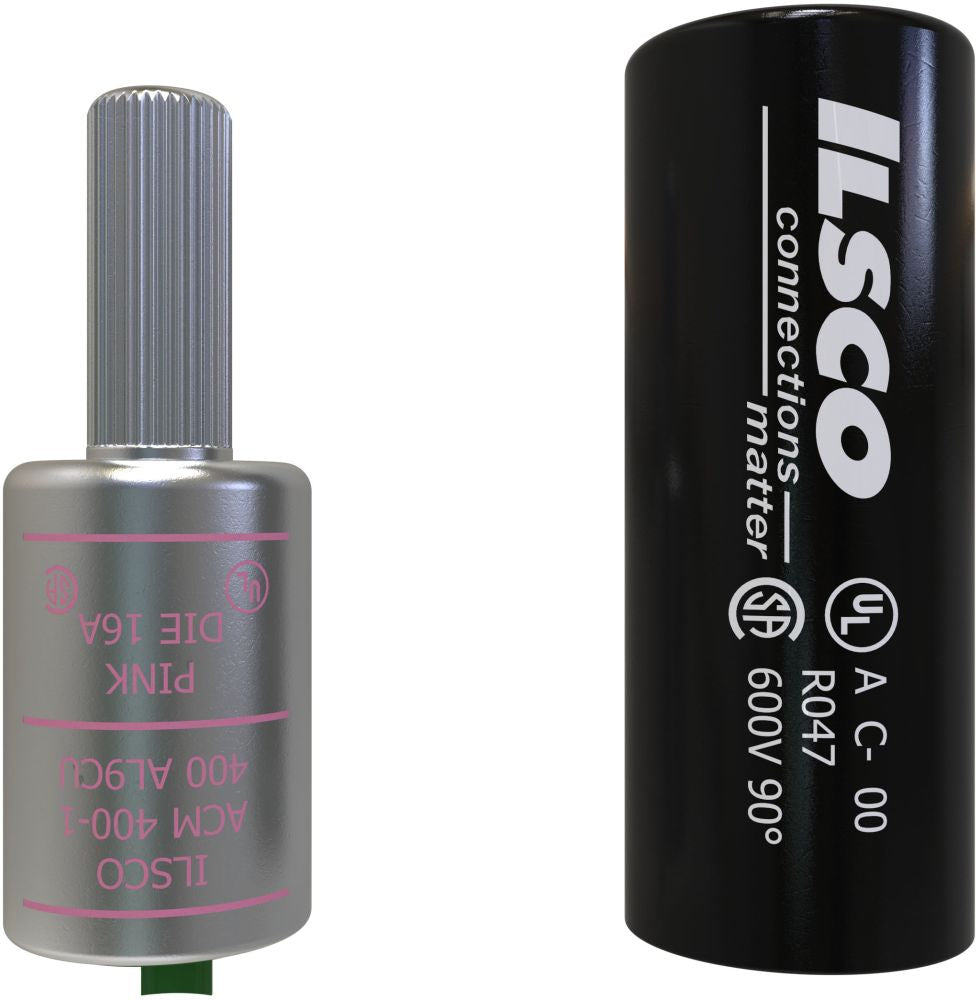

Ilsco ACM-400 Pigtail Adapter

Manufactured from High Strength Aluminum Alloy Provides Maximum Conductivity and Excellent Crimping Characteristics; Pin is Knurled Permits Greater Surface Contact; Chamfered Barrel Provides Easy Conductor Insertion; Clearly Marked with Wire Size and Die Index for ILSCO Tools, Proper Number and Location of Crimps Provides Easy Identification and Tooling Recommendation; Prefilled with DE-OX Prevents Oxides from Forming; Color Coded End Caps Inserted in Barrel Prevents Foreign Materials from Entering the Connector Prior to Usage and Color Code Identifies the Proper Compression Die; Supplied with Insulating Cover Eliminates Taping; RoHS Compliant

Specifications:

Type: Pigtail
Voltage Rating: 600 V
Conductor Material: Copper/Aluminum
Conductor Size: 400 KCMIL
Material: High Strength Aluminum Alloy
Pin Size: 5/8 Inch Dia x 1-39/64 Inch L
Cover Size: 1-3/4 Inch L
Overall Length: 3-41/64 Inch
Approval: UL 486A/B, CSA
