IDEAL Electrical 30-652J Wire Connector

Out of stock
SKU: 83774
Regular price $0.22
OR

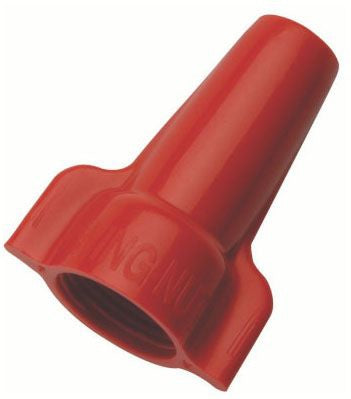

The Wing-Nut Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions.

Specifications:

Type: High-Leverage, Contoured Wing
Voltage Rating: 600 Volt, 1000 Volt (Fixture/Sign)
Wire Type: Copper
Wire Size: 18 to 8 AWG
Minimum Wire Combination Size: (2) #18
Maximum Wire Combination Size: (4) #10
Spring Type: Wide Range, Expanding, Live Action
Shell Material: Thermoplastic Polyester
Color: Red
Temperature Rating: 105 Deg C
Standard Package: 500 per Jar
Approval: UL 486C, CSA C22.2, CE
