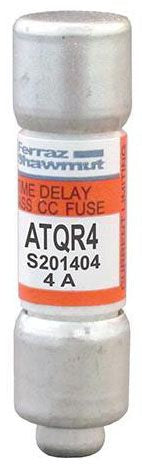

Mersen EP ATQR4 Control Transformer Fuse

Only 1 left
SKU: 83938
Regular price $13.45
OR

ATQR small-dimension fuses feature time-delay characteristics ideally suited for the high inrush currents of control transformers, solenoids and similar inductive loads. Mersen's ATQR fuses provide superior protection for the branch circuits of electrical distribution system.

Specifications:

Type: Class CC Rejection
Characteristics: Time Delay
Voltage Rating: 600 Volt AC, 300 Volt DC
Current Rating: 4 Amp
Interrupting Rating: 200 Kiloamp (AC), 100 Kiloamp (DC)
Terminal Type: Ferrule
Diameter: 0.41 Inch
Length: 1.5 Inch
Approval: UL 248/248-4, CSA C22.2
