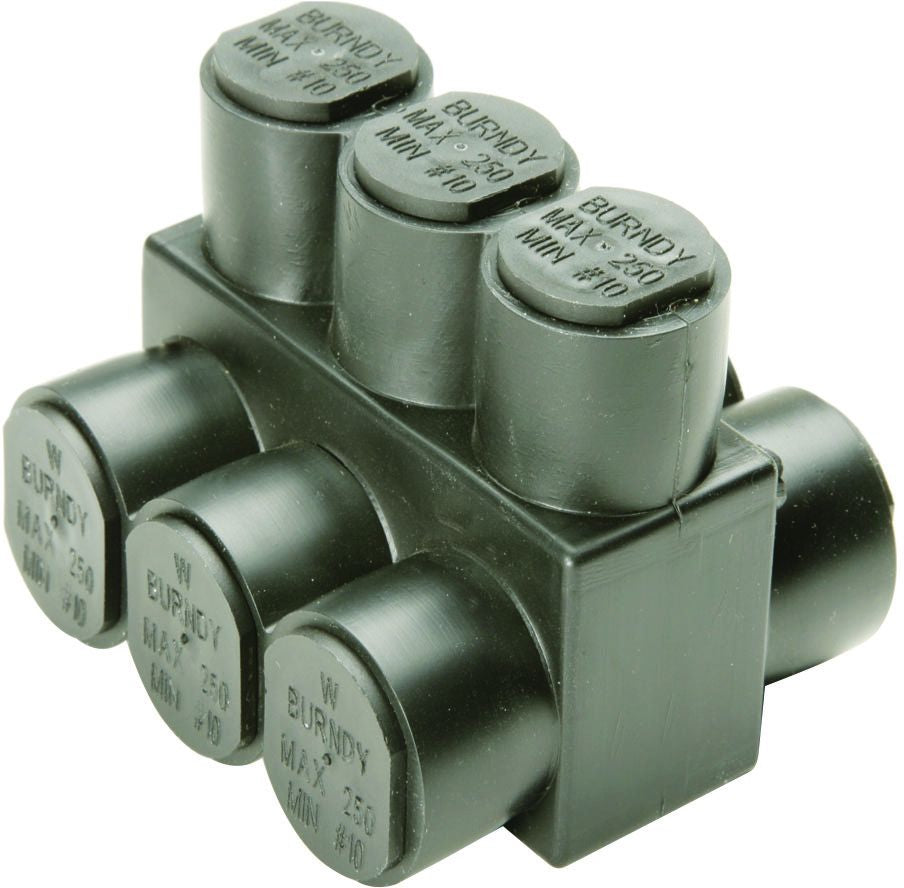

Tap connections are made quickly and easily with the UNITAP line of connectors. UL486A-B Listed. Dual-rated for any stranded copper or stranded aluminum applications. UL Listed 600 Volts, -40° C to 135° C Operating Temperature.

Specifications:

Voltage Rating: 600 V
Number of Ports: 3
Cable Entry: 2-Side Entry
Conductor Material: Aluminum/Copper
Minimum Conductor Size: 8 AWG (Aluminum), 14 AWG Stranded (Copper)
Maximum Conductor Size: 2/0 AWG (Aluminum), 2/0 AWG Stranded (Copper)
Body Material: Plastisol Covered AL6061-T6 Aluminum
Approval: UL 486B, CSA
