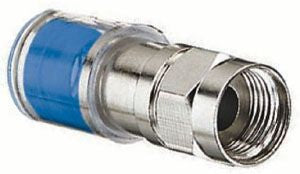

IDEAL Electrical 89-044 Coaxial Compression Connector

The IDEAL OmniConn F connector is a cable specific connector solution For RG-6 coax. The OmniConn connectors have a combination brass and plastic exterior and an inner O-ring to provide a weather proof connection suitable for just about any application from 5MHz to 3GHz, including CATV, satellite, HDTV and other A/V based applications - indoors or outdoors. An internal patented sealing compression sleeve prevents moisture from entering the backside of the connector and aids in cable retention.

Specifications:

Coupling Style: F
Configuration: Straight
Construction: 2-Piece, Preassembled Design
Cable Type: RG-6 Quad
Cable Insulation Outer Diameter: 0.26 to 0.28 Inch
Impedance: 75 Ohm
Body Material: Nickel Plated Brass and Plastic
Standard Package: 50 per Jar
Application: Indoor and Outdoor, Cable, Satellite Television
