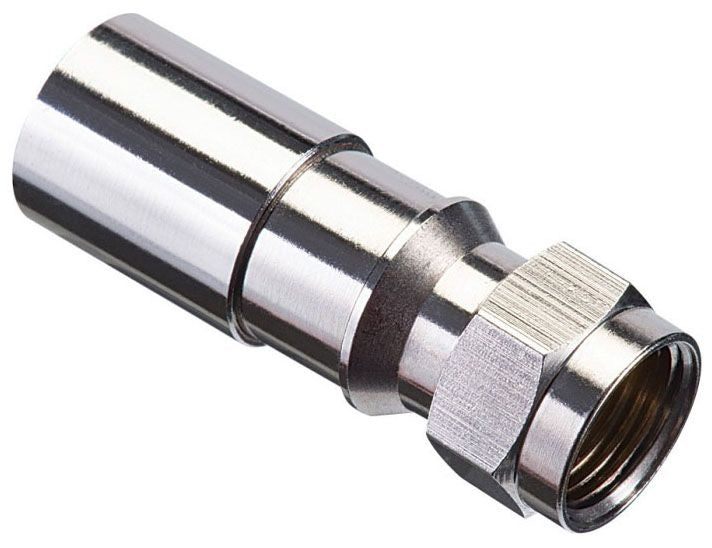

IDEAL Electrical 92-650 Compression Connector
Couldn't load pickup availability
The IDEAL RTQ XR series of F connectors offer a single connector solution to cover a range of coax types, including plenum rated versions. A patented compression sleeve design allows Regular (dual), Tri, and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors.
Specifications:
Coupling Style: F
Configuration: Straight
Cable Type: RG6, RG6 Quad, RG6 Plenum, RG6 Plenum Quad
Cable Insulation Outer Diameter: 0.226 to 0.31 Inch
Impedance: 75 Ohm
Installation: Compression
Body Material: Nickel Plated Brass
Standard Package: 50
Application: Satellite, Cable TV
