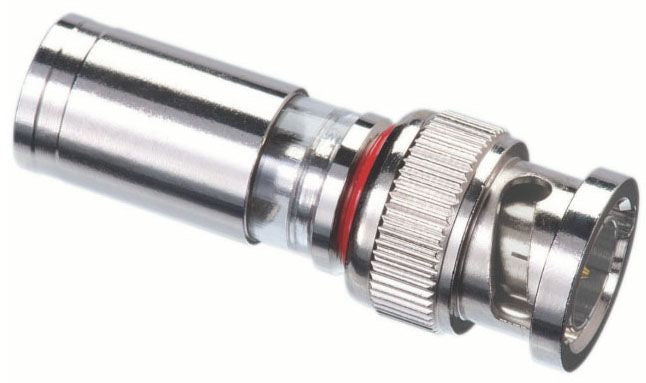

IDEAL Electrical 89-047 Compression Connector

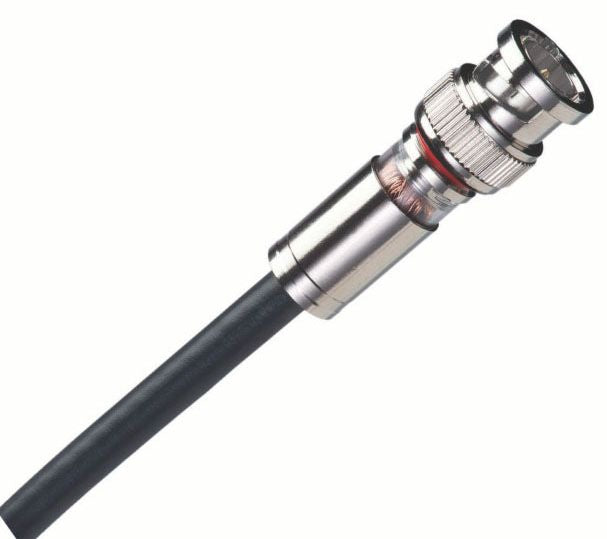

With the patented InSITE Technology feature, now standard on all IDEAL BNC and right angle (90°) compression connectors, field termination of these blind entry connectors is simpler, faster and now provides a higher performance connection for all applications from CCTV to HD Video. All IDEAL compression connectors require a ¼” x ¼” industry standard coax preparation. The prepped cable is then inserted into the connector until the folded braiding is visible within the InSITE window. No measuring, no jacket marking, no guesswork – a confident connection every time.

Specifications:

Type: Plug
Coupling Style: BNC
Configuration: Straight
Cable Type: RG59
Center Conductor Size: 23 to 18 AWG Solid
Cable Insulation Outer Diameter: 0.23 to 0.25 Inch
Impedance: 75 Ohm
Body Material: Nickel Plated Brass
Contact Material: Gold Plated
Standard Package: 15 per Card
Application: CCTV, Broadband
