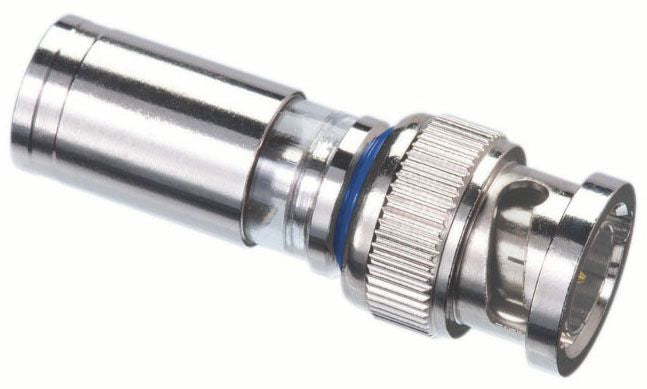

IDEAL Electrical 89-5048 Coaxial Compression Connector

Insite Window Allows Verification of Proper Cable Insertion before Compressing the Connector; Fixed Position, Gold Plated Center Pin Won't Come Loose or Separate from the Connector; Smoother and Easier Mating with Sockets Through Increased BNC Head Travel Range; Lower Cable Insertion Force Easier to Push the Connector on to the Cable

Specifications:

Coupling Style: BNC
Configuration: Straight
Cable Type: RG6 Quad
Center Conductor Size: 23 to 18 AWG Solid
Cable Insulation Outer Diameter: 0.226 to 0.305 Inch
Impedance: 75 Ohm
Body Material: Nickel Plated Brass
Contact Material: Gold Plated
Standard Package: 35 per Jar
Application: Security Camera and All Video
