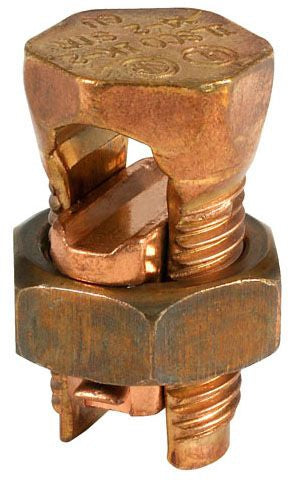

Ilsco IK-4 Mechanical Split Bolt Connector

Manufactured from High Strength Copper Alloy; Precision Tooled Threads; For Use with Copper Conductor Types: Solid, Compact, Compressed, Concentric; Suitable for Use in Circuits Rated 35Kv or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; Rated to 90 Deg C; Provides Maximum Conductivity and High Breakage Resistance; Allows Maximum Torque to be Applied; Suitable for Direct Burial in Earth and Concrete; Versatility; RoHS Compliant

Specifications:

Voltage Rating: 35 Kilovolt
Installation: Split Bolt
Conductor Material: Copper
Minimum Run Conductor Size: 8 AWG Solid
Maximum Run Conductor Size: 4 AWG Solid
Minimum Tap Conductor Size: 16 AWG Solid
Maximum Tap Conductor Size: 4 AWG Solid
Material: High Strength Copper Alloy
Approval: UL 467, UL 486A/B, CSA
