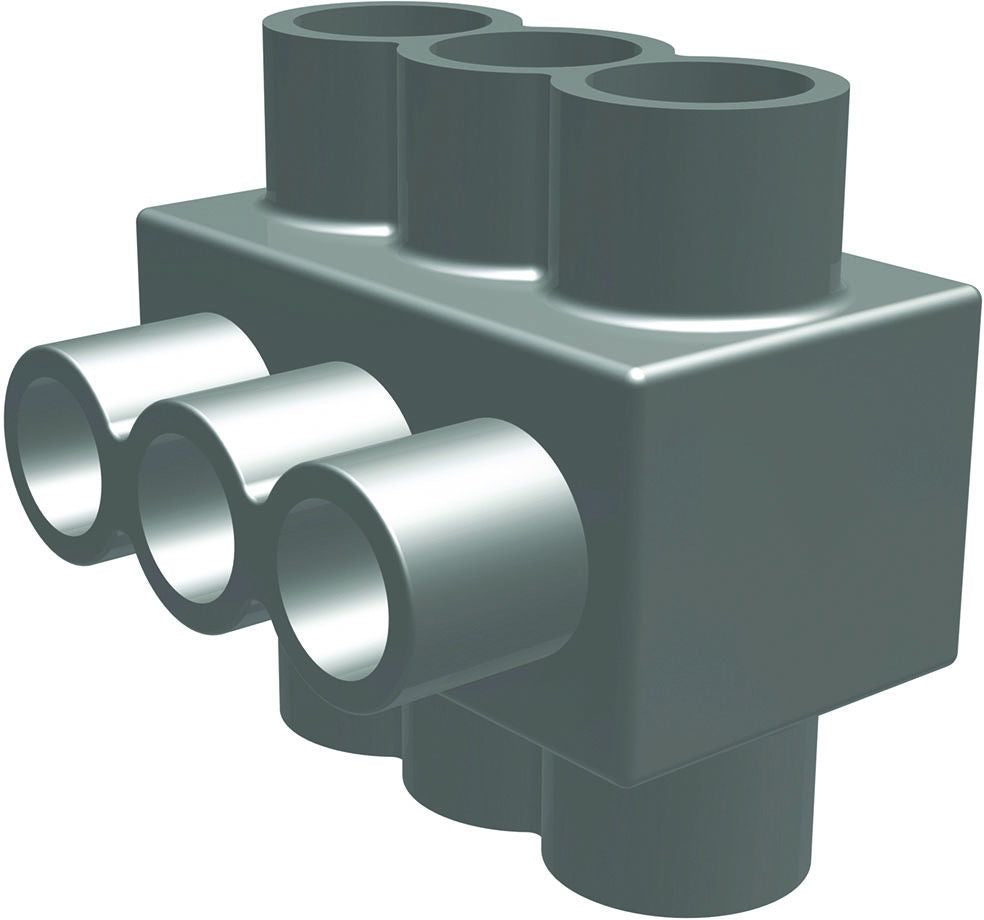

Tap connections are made quickly and easily with the UNITAP line of connectors. UL486A-B Listed. Dual-rated for any stranded copper or stranded aluminum applications. UL Listed 600 Volts, -40° C to 135° C Operating Temperature.

Specifications:

Voltage Rating: 600 Volt
Number of Ports: 6
Cable Entry: 2-Sided Entry
Conductor Material: Aluminum/Copper
Minimum Conductor Size: 4 AWG Stranded
Maximum Conductor Size: 600 KCMIL Stranded
Body Material: Aluminum
Approval: UL
