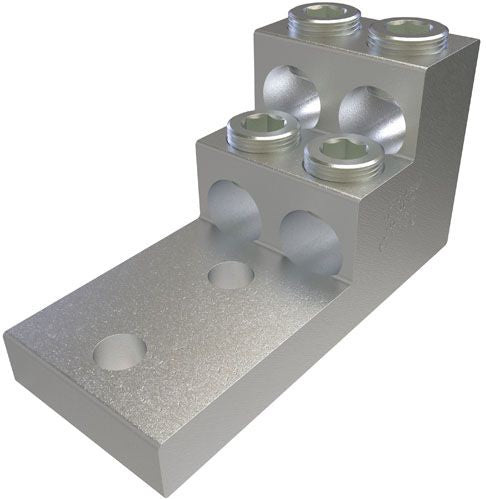

Ilsco PB4-600-2N Panelboard Lug

Provides Low Contact Resistance; Provides Ease of Installation; Saves Space and Reduces Installation Time; Application Versatility; Suitable for Use in Circuits Rated 35 Kilovolt or Less, Proper High Voltage Spacing and Insulation Techniques Must be used; RoHS Compliant

Specifications:

Type: Chamfered Wire Entry/Stacked
Number of Conductors: 4
Minimum Conductor Size: 2 AWG
Maximum Conductor Size: 600 KCMIL
Conductor Material: Aluminum/Copper
Pad Type: Straight
Screw Type: 1/2 Inch Hex
Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
Number of Pad Holes: 2
Pad Size: 3-1/8 Inch L x 2-15/32 Inch W x 3/4 Inch Thk
Stud Size: 1/2 Inch
Overall Length: 5-11/16 Inch
Approval: UL 453G, UL 486A/B, CSA
