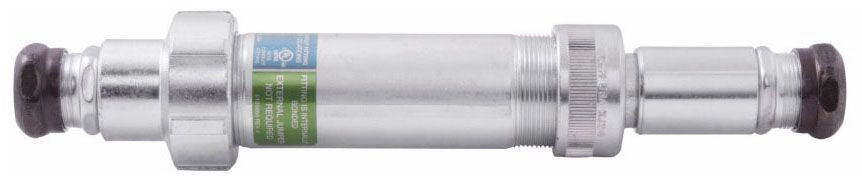

Crouse-Hinds XJG104-EMT EMT Expansion Joint

Weatherproof and Approved for Use Indoors or Outdoors without an External Bonding Jumper; Internal Bonding Springs and Metallic Bushings Create High Integrity Internal Ground Connection and Eliminate Need for External Bonding Jumpers and Clamps; Patented Design; Flat Surface on Gland Nut Provides Smooth, Flat Surface for Easy Wrenching; Distinct Black Gland Nut Provides Quick Identification as a Wet Location Fitting

Specifications:

Type: Thermal Expansion/Contraction
Trade Size: 4 Inch
Diameter: 6-5/8 Inch
Length: 21-1/4 Inch
Maximum Movement: 4 Inch
Constructional Feature: Weatherproof
Ground Type: Internally Grounded Tinned Copper Braid
Material: Electrogalvanized Steel Body/Washer, Electrogalvanized Aluminum Painted Feraloy Iron Alloy Bushing/Reducer, Black Painted Steel Gland Nut, Electrogalvanized Phosphor Bronze Ground Spring, PTFE Packing, Vellum Gasket
Approval: UL 514B, CSA C22.2
Used On: EMT Conduit
