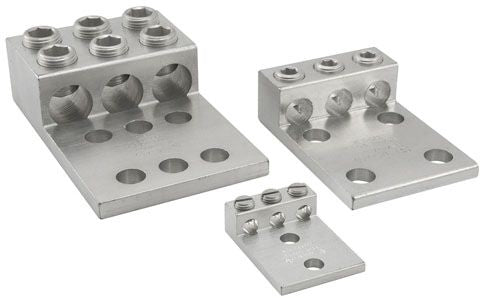

Ilsco T3A2-600N Mechanical Lug
Regular price
$83.72
Couldn't load pickup availability
Provides Low Contact Resistance; Provides Ease of Installation; Must be Mounted with a Minimum of 2 Bolts; Suitable for Use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; RoHS Compliant
Specifications:
Type: Chamfered Wire Entry
Number of Conductors: 3
Minimum Conductor Size: 2 AWG
Maximum Conductor Size: 600 KCMIL
Conductor Material: Aluminum/Copper
Pad Type: Straight
Screw Type: 3/8 Inch Hex
Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
Number of Pad Holes: 6
Pad Size: 3-1/4 Inch L x 3-1/2 Inch W x 3/8 Inch Thk
Stud Size: 1/2 Inch
Overall Length: 5-1/2 Inch
Approval: UL 453G, UL 486A/B, CSA
